Condition Monitoring Sensors That Keep Equipment Operating 24/7

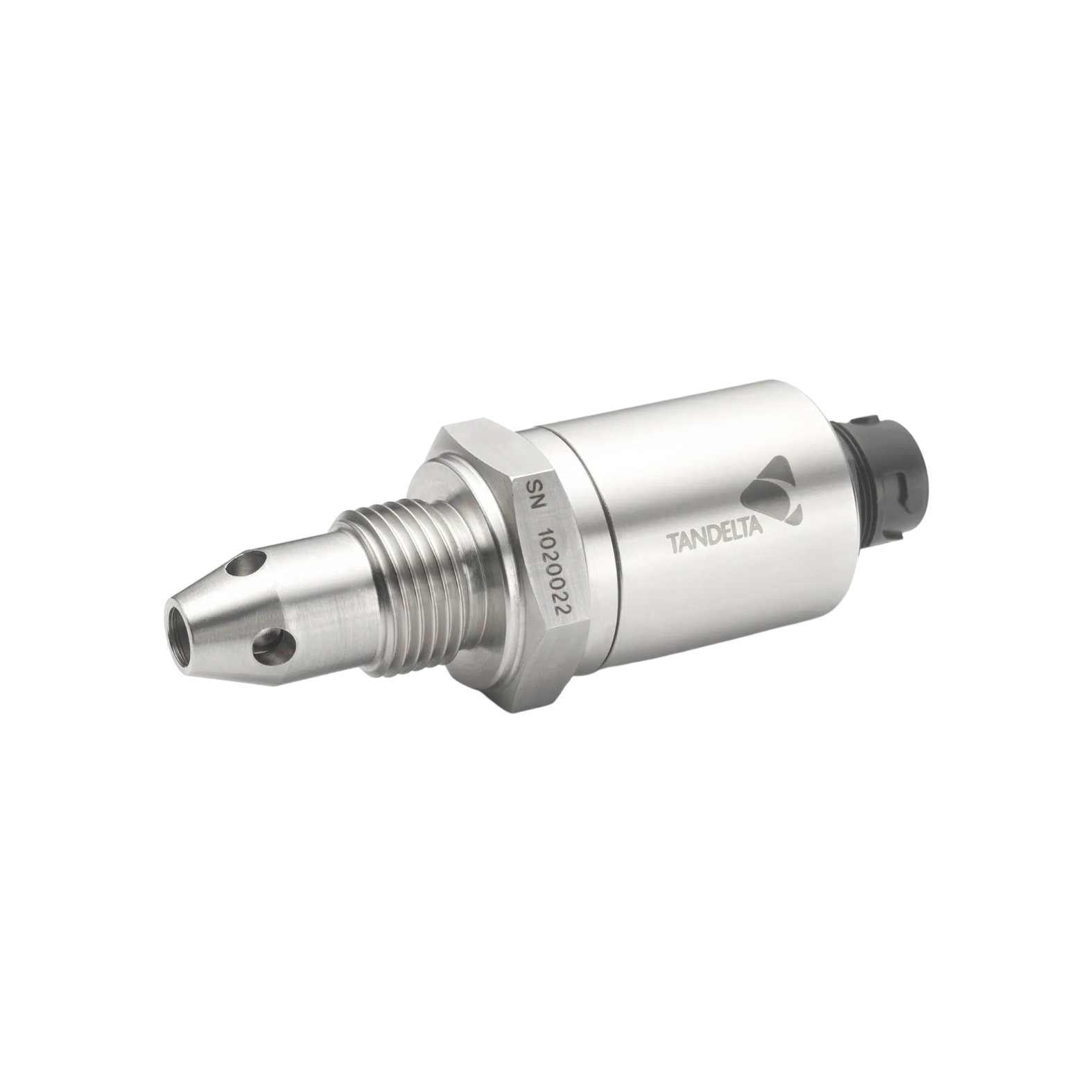

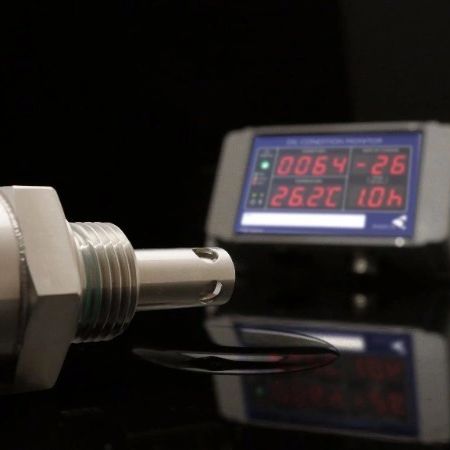

Tan Delta Oil Quality Sensors
Real Time Oil Monitoring. On-Site & 24/7 EWS Cloud Access
Tan Delta Oil Quality Sensor provides proven real-time monitoring of the electro-chemical changes in oil as it ages, effected by contaminates and water, and depletion of additives.
The sensor outputs a single, overall value for oil condition, making changes easy to identify and act upon. Oil temperature is also measured
Technical Specifications
Digital Outputs
RS485 - Modbus
CanBus - CanOpen, J1939
Analogue Outputs
4-20mA
Environmental Specifications
Temperature: -20c to 120c
Fluid Pressure: 70 bar / 1015 PSI
Water & Dust: IP68 (when connected)
Thread Options
1/2" BSPP
1/2" NPT
7/8" UNF
M18
Electrical
Supply: 9-30V DC
Consumption: 0.4w Average
